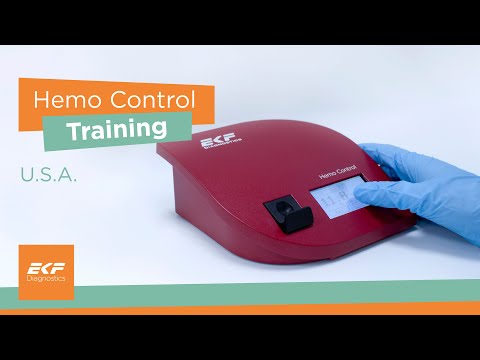

Hemo Control Analyzer

• 2 results in 1 test
• Easy to use
• Small 8 μL sample volume
• No routine maintenance required
• CLIA Waived

Accurate near patient testing for hemoglobin and hematocrit* meets advanced connectivity and reporting requirements


Collect blood sample

Put microcuvette into analyser

Result appears in 25–60 seconds

Easy to use

• User friendly features minimises training time
• Step by step instructions on screen
• Backlit touch screen
• User selectable language menu
• Soft-load cuvette holder minimizes risk of contamination

Practical and portable

• Hemoglobin and hematocrit results from one sample available in as quick as 25 seconds (and up to 60 seconds depending on the concentration)
• Venous, arterial or capillary blood
• Sample volume only 8 μl
• Microcuvette design minimizes risk of air bubbles
• Compact in size and weighing just 1.5 lbs
• No maintenance required. Auto self-test
• Integrated rechargeable battery (100 hours)

Accurate and reliable

• Operating ambient temperature 59 – 104 °F
• Photometric azide methemoglobin method
• Linear measuring range: 11-255 g/L (1.1.-25.5 g/dL); 0.7-15.8 mmol/L
• Imprecision: CV <1.5 %
• Hematocrit range: 36 – 53 %
• Calibrated to NCCLS reference method
• Control cuvette included

Data management functions

• Bidirectional interface using a standard communication protocol
• Stores 4,000 patient results
• Connect to PC via USB connector cable
• Basic device upgradeable with data management (DM) functions: Barcode identification of patients, operators, cuvette LOT and control materials, quality control lockout function, additionally stores 500QC results
• Connectible with EKF Data Management software for easy configuration and reporting
